Analog Multimeter, 20-Range AC/DC General Purpose, 7 Functions
Product details
| Management number | 230820199 | Release Date | 2026/06/18 | List Price | $18.00 | Model Number | 230820199 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

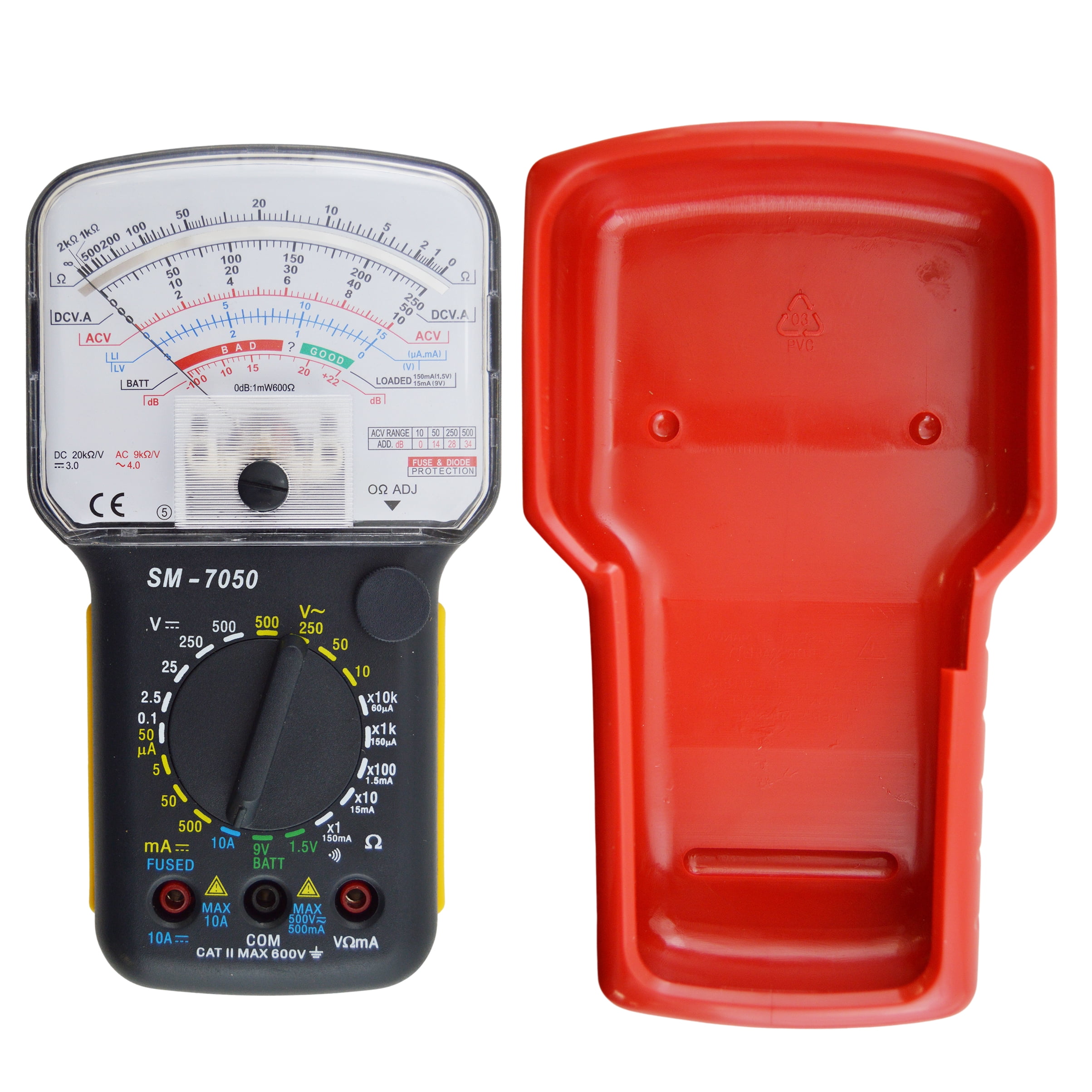

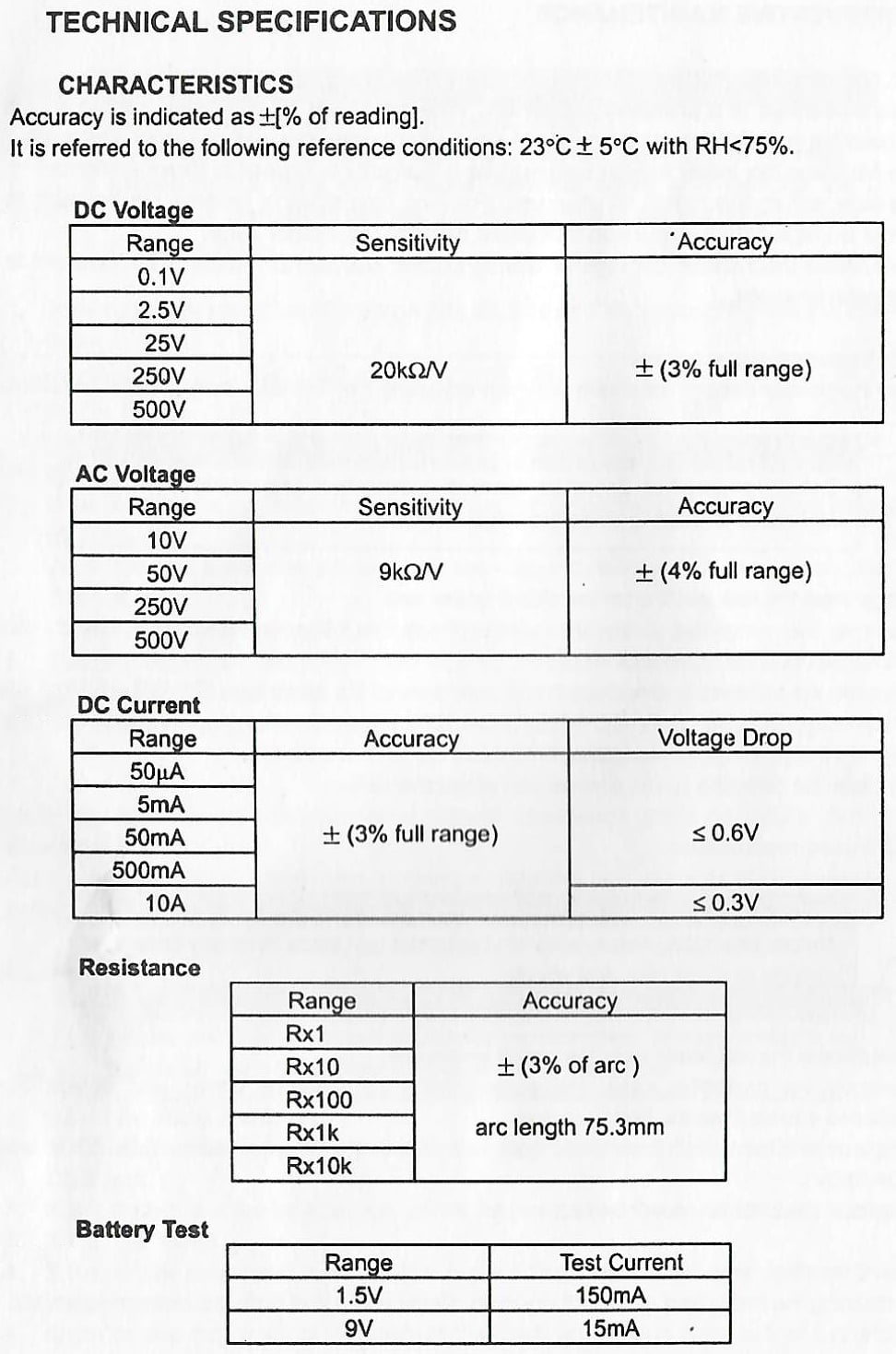

This analog multimeter has 7 functions 20 ranges. It features high sensitivity and accuracy. <br><br> Specifications: <br><br> DC Voltage: 0~0.1/2.5/25/250/500V (20k ohm /V) +/- 3% f.s. <br>AC Voltage: 0~10/50/250/500V (9k ohm /V) +/- 4% f.s. <br>DC Current: 0~50u/5m/50m/500m/10A +/- 3% f.s. <br>Resistance: 0~2k/20k/200k/2M/20M ohm +/- 3% full arc (Arc length: 75.3mm). <br>Continuity Buzzer: R X 1 range 0~30W sound. <br>Battery Test: 1.5V (150mA)/9V (10mA). <br>Decibel: -10 ~56 dB (0dB: 0.775V 1mW 600W). <br>Power Source: 9V X 1, 1.5V X 2. <br>Fuse: 0.5A/250V 5 X 20mm fast acting 10A/250V 5 X 20mm fast acting. <br><br> Size: 7.5" x 4.3" x 2" (including holster) Weight: 1 lb. <b>NOTE: Color of holster may vary</b>
- 7 functions 20 ranges
- DC Voltage: 0~0.1/2.5/25/250/500V (20k ohm /V) +/- 3% f.s.
- AC Voltage: 0~10/50/250/500V (9k ohm /V) +/- 4% f.s
- DC Current: 0~50u/5m/50m/500m/10A +/- 3% f.s
- Resistance: 0~2k/20k/200k/2M/20M ohm +/- 3% full arc (Arc length: 75.3mm)
| Multimeter type | Analog |
|---|---|
| Brand | Electronix Express |
| Display | Analog |
| Power type | Battery |
| Model | 01AMA7050 |
| Weight | 1 oz |
| Rec. use | General |
| Has written warranty | No |
| Material | Holster |
